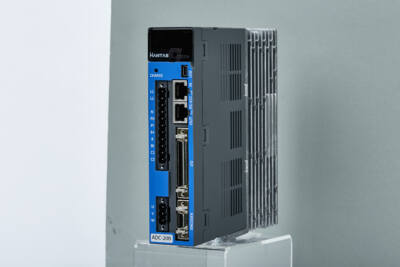

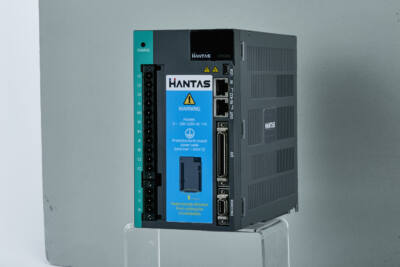

AD Controller
AD controller is a reliable robotic spindle system engineered for accurate and repeatable torque control.
It is optimized for automation line, it can see the effects of improving productivity and reducing labor costs.
When used with robots such as SCARA, accurate and difficult to assemble sections can also be assembled.
PC or PLC can control torque, speed control and tightening results monitoring by communication.
Controller specification
| Model | ADC-100 | ADC-200 | ADC-400 | ADC-1K | ADC-2K |
|---|---|---|---|---|---|
| Input power | AC200-230V, 50/60Hz single phase | AC200-230V 3 phase | |||
| Rated Output | 1.4A | 1.7A | 3.0A | 6.75A | 13.5A |
| Temperature | Operation : 0-50°C, Storage : -20~65°C | ||||
| Humidity | 90% RH | ||||
| Protection | Over current, over load, over heat, over & low voltage | ||||
| COM port | RS-422 (Modbus-RTU) / Max 200m, USB 2.0 (mini B) | ||||
| Protocol | Modbus RTU | ||||
| No. of program | 15 Presets | ||||
| Auto paring | Auto detection of the spindle when power ON of the drive | ||||
Accessories
ParaMon Touch – AD
[Main features]
- Parameter setting & monitoring same as ParaMon PC software
- Data auto saving in file system. One file a day / monthly folder, yearly folder
- Available for ADC controller
- 7” TFT LCD with touch screen
- Auto fastening data output by RS232
- Remote operation of the tool
[Specification]
| Description | Remark | |
|---|---|---|
| Power supply | AC100-240V~ 50/60Hz, 1.5A | AC-DC adapter SW24 |
| Input power | DC24V, 1A | |
| Size | 202(W) 154 (H) 40 (D) | |
| Weight | 0.55 kg | |
| Display | 7” TFT LCD with touch screen | 800 x 480 px |
| COM port |
2 - RS232C (MDC & Barcode scanner) 2 - RS422 (ADC – IN & OUT) 1 - USB1 - Ethernet |
|
| Memory |
8 GB SD card. Auto fastening data saving. Auto file and folder creating |
One file a day Monthly and yearly folder |
