AD Driver

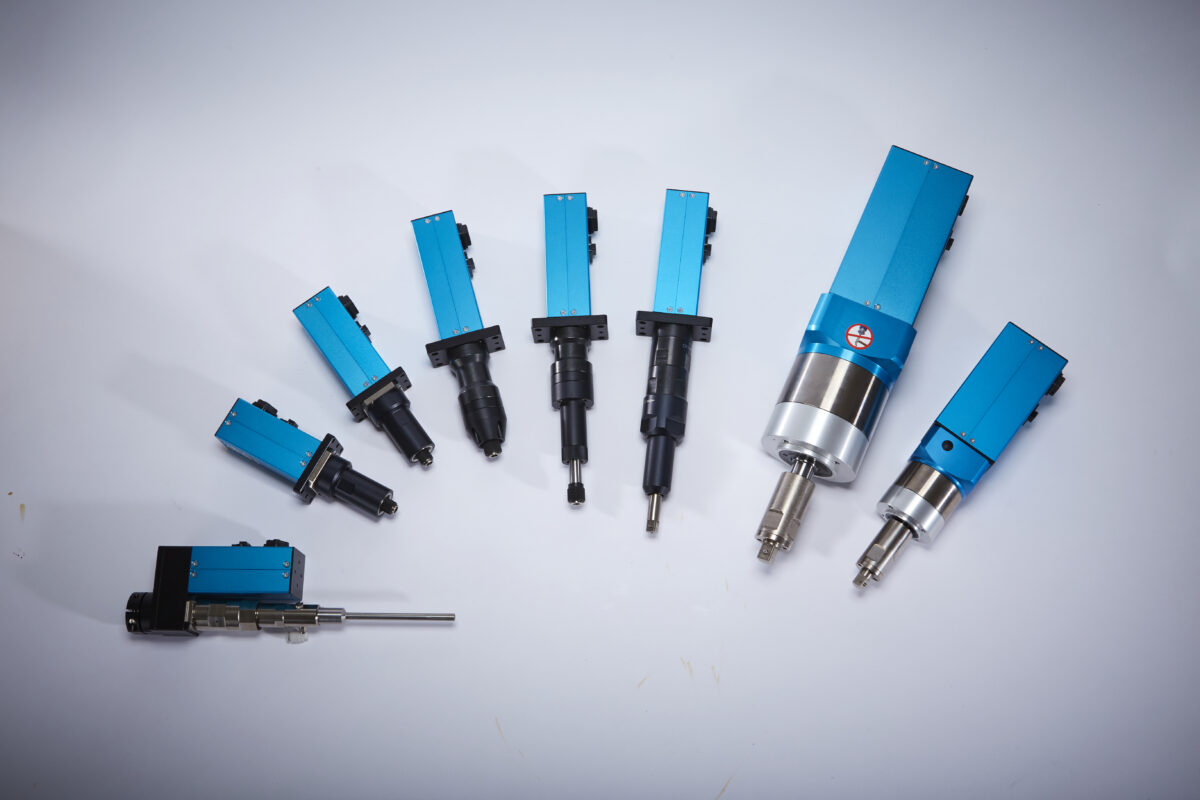

AD driver is a reliable robotic spindle system engineered for accurate and repeatable torque control.
It is optimized for automation line, it can see the effects of improving productivity and reducing labor costs.
When used with robots such as SCARA, accurate and difficult to assemble sections can also be assembled.
PC or PLC can control torque, speed control and tightening results monitoring by communication.
Catalog

DRIVER LIST

Model Torque (Kfg.cm) RPM  Weight (Kg) Drive Size Controller
AD050R01 0.5 ~ 5.5 150 - 2000 0.59 Hex1/4” or dia 4 ADC-100
 AD050M01 0.5 ~ 5.5  150 - 2000  0.80  Hex1/4”
AD100R01  1.5 ~ 12   150 - 2000  0.74  Hex1/4” ADC-200
AD100M01  1.5 ~ 12  150 - 2000  0.94  Hex1/4”
AD150R01  2 ~ 20  150 - 2000 0.90  Hex1/4” ADC-400
 AD150R03  6 ~ 50  100 - 1200  1.30  Hex1/4”
 AD150R04  8 ~ 60  100 - 1200  1.30  Hex1/4”
AD150R11  20 ~150  50 - 450  1.35  Hex1/4”
AD150R16  30 ~ 200  30 - 310  1.35  Hex1/4” or SQ3/8"
AD150M01  2 ~ 20  150 - 2000  1.11  Hex1/4”
 AD150R27  40 ~ 400  30 - 180  1.5  SQ3/8"
AD150R36  50 ~ 380  20 - 138  1.74  SQ3/8"
 AD150R64  100 ~ 650  10 - 75  1.89 / 1.90  SQ3/8" or SQ1/2”
AD400R03  20 ~ 130  50 - 1650  2.75  SQ3/8" ADC-1K
AD400R04  25 ~ 175  50 - 1200  2.75  SQ3/8"
AD400R05  30 ~ 220  50 - 1000  2.75  SQ3/8"
AD400R07  40 ~ 330  50 - 710  2.75  SQ3/8"
AD400R10  60 ~ 445  50 - 500  2.80  SQ3/8"
 AD400R20  110 ~ 875 30 - 250  3.10  SQ3/8"
AD1KR05  50 ~ 600  50 - 1000  7.45  SQ1/2” ADC-2K
AD1KR10  200 ~ 1200  50 - 500  7.50  SQ1/2”
AD1KR20  400 ~ 2400 30 - 250  8.40  SQ1/2”
AD1KR25  800 ~ 3000 30 - 200  8.40  SQ1/2”

Customizing

Accessories

[Vacuum Pick-up Assy]

Mouthpiece is not included. It should be customized for screw and application details.

Item Code Bit Size   Screw Size  Available Tools
 #300056  Hex 1/4"  M20  AD050R01-A, AD100R01-A, AD150R01-A
 #300057  Hex 1/4"  M23  AD150R03, AD150R04, AD150R11, AD150R16
#300058  Dia 4mm  M20  AD050R01-E

[Cushion type & VPA/VAPⅡ]

 Cushion Type  Length   Available VPA
 C  4.5 mm  VPA(#300056)
 C1  10 mm  VPA(#300056)
 C2  10 mm  VPA(#300056), VPAⅡ(#300181)

[Bit Holder Assy]

Extra bit holder with bearing provide better bit concentricity for especially long length bit.

 Item Code Bit Size  Screw Size Available Tools
#300053 Dia 7mm  M20 AD050R01-A, AD100R01-A, AD150R01-A
#300054  Dia 7mm  M23  AD150R03, AD150R04, AD150R11, AD150R16
#300055  Dia 4mm    M20   AD050R01-A, AD100R01-A, AD150R01-A
#300137  Hex 1/4"  M20   AD050R01-A, AD100R01-A, AD150R01-A
#300138  Hex 1/4"  M23  AD150R03, AD150R04, AD150R11, AD150R16
