EZ-TORQⅢ(Torque Meter)

The EZ-TorQ III makes torque control easier and more available across every aspect of the line from the calibration lab to the assembly station. Highly portable and user friendly, this battery powered torque validation hub can be easily carried around the assembly line to spot check tools as part of a QA program or used at assembly stations for quick and easy torque tool validation and calibration. The new smart phone like touch-screen interface breaks down barriers and ensures quick and easy validation of different ranges as needed.
Catalog

Main Feature

  • Torque measure +/- 0.5% accuracy
  • Support Tools : Screwdriver, Nut runner, Click wrench, Pulse Tool
  • OK / NG display on target and tolerance setting
  • Torque curve graph with 1ms resolution
  • User friendly graphic interface, easy operation
  • Variable torque units
  • Auto data saving in SD card
  • 5 “ color LCD touch screen

Product Specification

Power  DC3.7V 5,000mAh Li-ion rechargeable battery
 Battery charger  Mini USB port, DC5V 2A
 Power consumption & Battery run time     LCD brightness and power consumption
 100% = 600mA (6 hours)
75%   = 500mA (8 hours)
50%   = 450mA (9 hours)
25%   = 330mA (11 hours)
 LCD display 5 Inch Color LCD Touch Screen
 Battery charging time  6 hours for full charging
 Torque range  10i, 50i, 100i, 150i, 300i
 Accuracy  +/- 0.5% of reading @ 20 - 100% Full Scale (Bi directional calibration)
 Low pass filter selections  180 / 500 / 1000 Hz
 Operation Modes  Track, Peak, First Peak
 Torque units  ozf.in. / lbf.in / lbf.ft / cN.m / N.m / Kgf.m / Kgf.cm
 Data memory  Memory SD Card, up to 32GB
 Multi Language  English, Spanish, French, German, Chinese & Portuguese
 Test statistics  SPC data and CMK
 Reading history  10 lastest readings
 Display reset  Manual or Auto clear
 OK/NG judgement  By tolerance setting from target

Model

[Torque meter – Built In type]

[Torque meter – Built Out type]

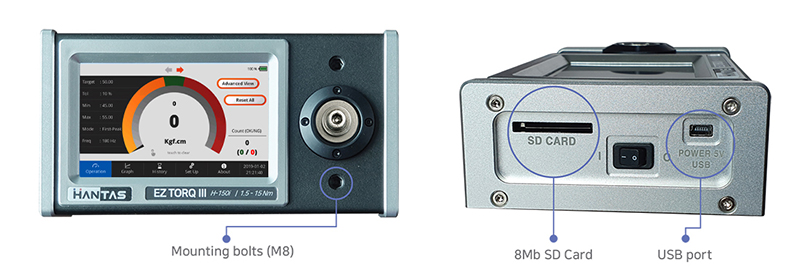

  • SD card for test data saving with auto folder creating of Year, Month
  • Mini USB port is used for battery charging and display data download
  • Tester is always required to be mounted with two M8 bolts which are built-in
  • The standard cable length is 3M (The cable only for H-Reader)
 Item Code Model Torque Range(kgf.cm)
108008  EZ-TORQⅢ, 3i  0.3 - 3
108009  EZ-TORQⅢ, 5i  0.5 - 5
108010  EZ-TORQⅢ, 10i  1 - 10
108011  EZ-TORQⅢ, 50i  5 - 50
108012  EZ-TORQⅢ, 100i  10 - 100
108013  EZ-TORQⅢ, 150i  15 - 150
108014  EZ-TORQⅢ, 300  30 - 300
Item Code Model Torque Range(kgf.cm)
 108026  EZ-TORQⅢ, 3i/B  0.3 - 3
 108027  EZ-TORQⅢ, 5i/B  0.5 - 5
 108028  EZ-TORQⅢ, 10iB 1 - 10
 108030  EZ-TORQⅢ, 50i/B  5 - 50
 108031  EZ-TORQⅢ, 100i/B  10 - 100
 108012  EZ-TORQⅢ, 150i/B  15 - 150
 108032  EZ-TORQⅢ, 300i/B  30 - 300
 Item Code  Model
108049 EZ-TORQ Ⅲ/A (Built out)
108050 EZ-TORQ Ⅲ/AB (Built out)
Item Code  Model  Torque Range(kgf.cm)
 108052  3i/A  0.3 - 3
 108053  5i/A  0.5 - 5
 108054 10i/A 1 - 10
 108056 50i/A 5 - 50
 108057 100i/A  10 - 100
 108058 150i/A  15 - 150
 108059 300i/A  30 - 300
 108060 500i/A  50 - 500

Accessories

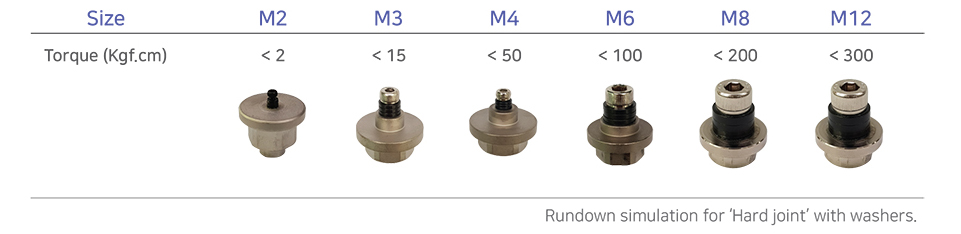

[Rundown Adaptors]

[Package]

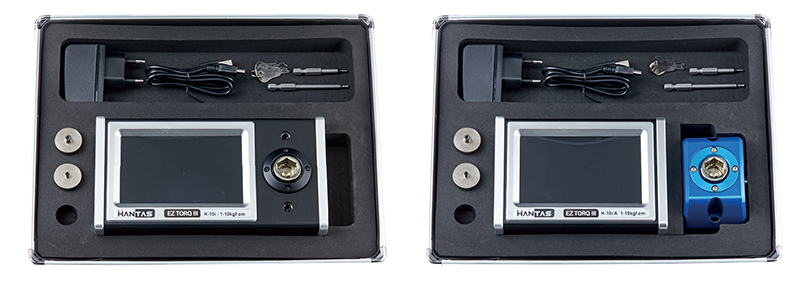

Package detail is depend on the model.

[SD Card Memory Data Sample]

No.  Result  Time  Mode  Torque  Unit  Tol(%)  Avg  Min  Max  Std Dev  CM  CMK
 1  OK  2018-11-22 16:11  Peak 10.65  Kgf.cm  10  10   10.65 10.65   0 0 0
2  OK  2018-11-22 16:11   Peak 10.61  Kgf.cm  10  10  10.3  10.65  0.02   16.61  1.17
3  OK  2018-11-22 16:11   Peak 10.3  Kgf.cm  10 10 10.3 10.65   0.16  2.15  1.03
 4  OK 2018-11-22 16:11  Peak 10.61   Kgf.cm  10 10 10.3 10.65   0.14  2.38  1.09
5  OK 2018-11-22 16:11  Peak 10.56  Kgf.cm  10 10 10.3 10.65  0.11  2.66  1.21
6  OK 2018-11-22 16:11  Peak 10.76  Kgf.cm  10 10 10.3 10.65  0.13  2.91  1.32
7  OK 2018-11-22 16:11  Peak 10.57   Kgf.cm  10 10 10.3 10.76  0.12  2.59  1.1
 8  OK 2018-11-22 16:11  Peak 10.47  Kgf.cm  10 10 10.3 10.76  0.12  2.76  1.17
 9  OK 2018-11-22 16:11  Peak 10.46  Kgf.cm  10 10 10.3 10.76   0.12  2.83  1.23
 10  OK 2018-11-22 16:11  Peak 10.56   Kgf.cm  10 10 10.3 10.76   0.12  2.87  1.28
