DPC Touch Position Controller
- DPC TOUCH controls the location to enable error-free operation.
The position encoder can detect a worker's position with high resolution. The DPC TOUCH also displays the order of work on the image, enabling accurate work.
The DPC TOUCH can lock the driver unless it is in the correct position to prevent mistakes by the operator.
Automatically save the result value of the engagement to the SD-Card.

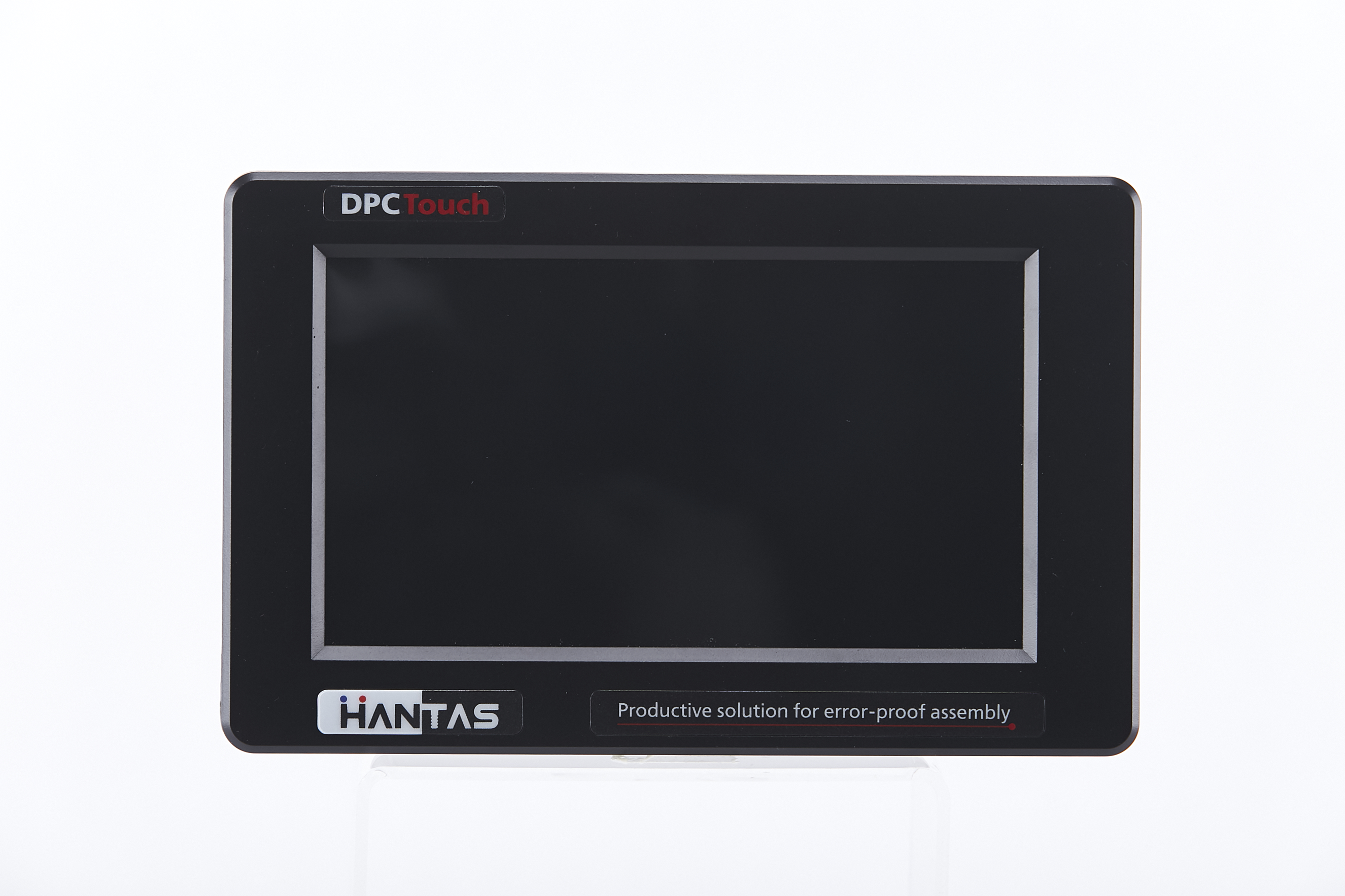

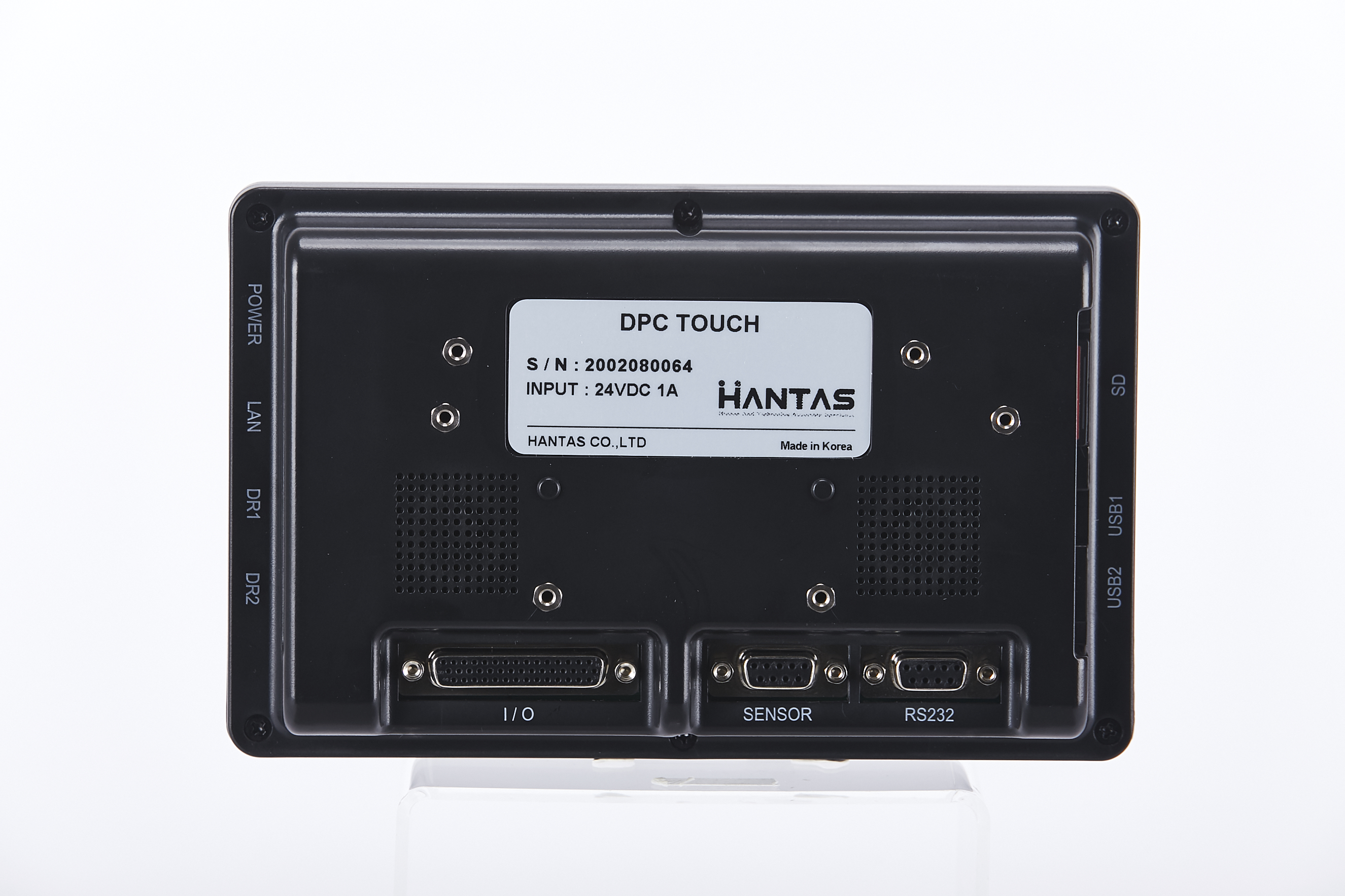

Product Image
MAIN FEATURE
Worker Assembly Process Guide via Image
Accurate Full Proof System
12 inputs and 12 output ports with allocable features
4-channel 5V analog encoder
Save data with SD card
255 jobs x 255 staff x 99 positions for each engagement
position accuracy: 0.09° unit angler encoder <0.5 mm unit liner encoder>
Adjustable for each axis and position
Default required signal: « Fastening OK», « Tool Lock»
Smart Error Check System
7" LCD Touch Screen, 800 x 480 px
Product Specification
| Input Power | DC24V, 1A AC 100-240V / DC 24V adaptor is provided |
| Size | 202(W) x 128(H) x 38(D) mm |
| Weight | 0.55 kg |
| LCD | 7" LCD Touch screen |
| GUI | Can be set graphically, such as images of the fastener, fastening points, etc |
| I/O | Supports automated workstations using 12 input/output signals each |
| Encoder | 4 channels, 0...5V |
| SDCARD | Removable SD card, 8Gb |
| Maximum number of sequences | 255 jobs with open structure |
| Maximum number of position settings | 255 jobs x 80 steps x 50 positions (80 steps and 50 positions can be set for one job) |
| Encoder Accuracy | 0.09° for angular encoders <0.5 mm for linear encoders> |
| Position tolerance | Adjustable Smart Tolerance for each position and each axis |
| Compatible Tools | Any tool that gives I/O signal – Minimum required signal: « Fastening OK», « Tool Lock» |
| Communication Port | RS232 for bar code scanner, Ethernet |
